3.6 Glycine

Glycine, with the formula NH $_2$ CH $_2$ COOH, is the smallest of 20 aminoacids commonly found in proteins. Aminoacids are important in nutrition and widely used in the pharmaceutical industry.

The polymorphism of glycine is intensively investigated ^{112; 113; 114; 115; 116; 117; 118}. Glycine is known to crystallize in four polymorphs with space groups P2 $_1$ /c, P2 $_1$ , P3 $_2$ and P2 $_1$ /c which are labeled $\alpha$ , $\beta$ , $\gamma$ and $\sigma$ , respectively ¹¹². The glycine molecule is pictured in Fig. 3.10a. The $\alpha$ , $\beta$ , and $\gamma$ phases are found at ambient pressure, with $\alpha$ and $\beta$ phases being metastable with respect to the $\gamma$ phase. $\sigma$ glycine has recently been found to form under pressure ¹¹⁴. In the gas phase, glycine is in a nonionic form, while in all four of the crystal structures glycine is zwitterionic (as shown in Fig. 3.10a). In this form, an -NH $_3$ $^+$ group on one ion electrostatically interacts with a -COO $^-$ group on a neighboring ion. Although zwitterionization causes an increase in energy with respect to the gas-phase molecule, it is thought that the zwitterionic crystals are stabilized by the increase in number of hydrogen bonds that can be formed in comparison to the number that would be formed in the nonionic case.

Since the glycine zwitterion only has the point symmetry C $_1$ (i.e. no symmetry), structure prediction of glycine is even more challenging compared with benzene. We performed variable cell prediction at 1 GPa with 2 - 4 molecules per cell. Without any experimental information, we found $\beta$ -glycine (Fig. 3.10c) as the metastable structure with Z = 2; and $\gamma$ -glycine (Fig. 3.10d) as the best structure with Z = 3. We also found $\alpha$ -glycine as the metastable form in the calculation with Z = 4 (Fig. 3.10b) at 2.0 GPa. Relative stability is, however, in poor agreement with experimental observations. GGA+D results show that $\alpha$ glycine possesses the lowest enthalpy, while $\gamma$ and $\beta$ phase are 20 meV/molecule and 30 meV/molecule higher, respectively. However, the experimental results demonstrated the relative thermodynamic stability to be $\gamma$ $>$ $\alpha$ $>$ $\beta$ . This shows the need for better ways of computing intermolecular interaction energies.

$\includegraphics[scale=0.4]{chapter3/pdf/Fig9.png}$

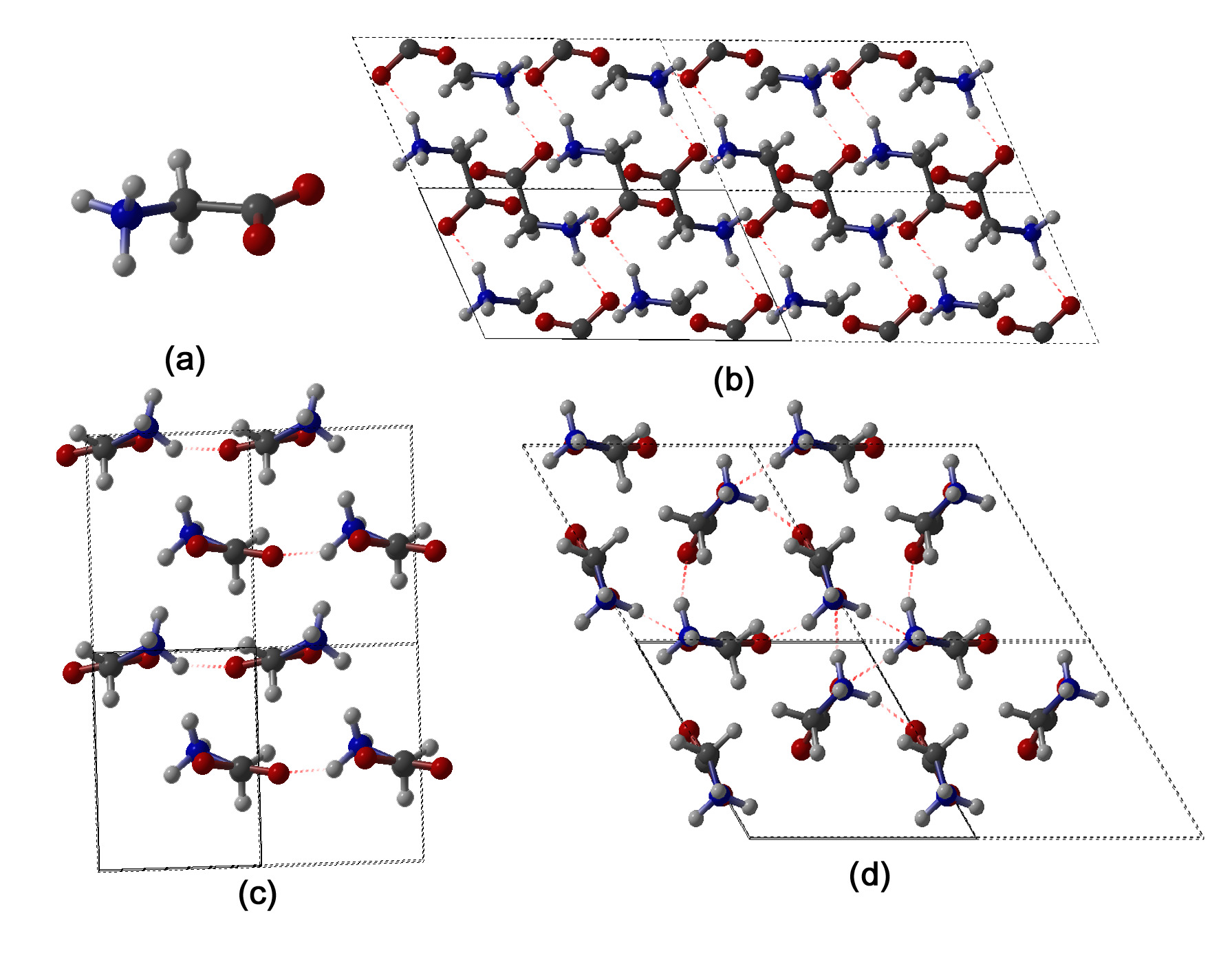

Figure 3.10: Glycine polymorphs found by USPEX. a) representation of glycine zwitterion; b) $\alpha$ -glycine at 2 GPa(Z=4, a=5.390 , b=5.911 , c=10.189 , $\beta$ =113.2 $^\circ$ ); c) $\beta$ -glycine at 0.4 GPa(Z=2, a=5.372 , b=6.180 , c=5.143 , $\beta$ =111.9 $^\circ$ ); d) $\gamma$ -glycine at 1 GPa(Z=3, a=b=7.070 , c=5.490 ).
