SN 1993J IIb in M81 (NGC 3031, Sab)
OBJ: SN 1993J IIb in M81 (NGC 3031, Sab). See
Leda: M81.
DISCOVERY: 1993mar28.9 UT by Francisco Garcia. See {richmond1994}.
MAX: 1993apr17.2 UT in UVOIR bolometric from {richmond1994}. This is neary V maximum too.
This day of the year 107.
SUPERNOVA of the YEAR: 10.
HEADER: D. J. Jeffery (2006jan01).
REF:
{barbon1995}
\bibitem[Barbon et al.(1995)]{barbon1995}
Barbon, R., Benetti, S., Cappellaro, E., Patat, F., Turatto, M., \&~Iijima, T.
1995, A\&AS, 110, 513
%ADS Reference
% SN 1993J in M 81: One year of observations at Asiago.
{houck1994}
\bibitem[Houck \&~Frannson(1994)]{houck1994}
Houck, J. C., \&~Fransson, C. 1994,
American Astronomical Society, 185th AAS Meeting, #79.07; Bulletin of the American Astronomical Society, Vol.~26, p.~1444
% ADS reference.
% Analysis of the Late Spectra of SN 1993J (IIb) and SN 1994I (Ic).
{richmond1994}
\bibitem[richmond et al.(1994)]{richmond1994}
Richmond, M. W., Treffers, R. R., Filippenko, A. V., Paik, Y., Leibundgut, B., Schulman, E., \& Cox, C. V.
AJ, 107, 1022
% ADS reference.
% UBVRI photometry of SN 1993J in M81: The first 120 days.
% The UVOIR bolometric maximum was JD 2449094.70 +/- 1 (see p. 1035). This is 1993apr17:4:48 = 17.2 exactly.
% B maximum was 2449093.7 (see p. 1033).
% V maximum was 2449095.0 (see p. 1033).
% These are secondary maxima since there was a UV spike just after shock breackout: the
% decline from the spike was observed.
% Estimate time of core collapse JD 2449074.4 +/- .2 (see p. 1029). This is 1993mar27:21:36 = 27.9 exactly.
% See US Navy Observatory Julian Date Converter.
REP: F_lambda (erg/cm2/s/A) ??? vs. lambda (ang) (iformat = 1)
COR: not deredshifted ??? (heliocentric velocity -39 +/- 2 km/s (a blueshift) and
v_hel corrected for CMB radiation 46 km/s from
Leda: M81.
not dereddened ??? (Galactic foreground .35/4... =.0875
Schlegel et al. (1998).
Total extinction is probably not very different.
not smoothed ????, not photometric ????
Derived maximum in some band is 2002apr10 (see above).
OBS: ???? Alejandro Clocchiatti
Date: 1993apr01 (91) with 1993apr17 (107, JD 2449094.70) for bolometric maximum gives:
day = 78.64 - 94.70 = -16.06
&specnamelist
aname='sn1993J IIb 1993_04_01'
ebv=.0875
epoch= -16.06 ! This parameter needs to updated for the particular spectrum.
iformat=1
itick=2
itickln=4
t_rise=20.d0 ! default
v_helio=-39.
ymin2=4.5d-14
ymax2=2.6d-13
ymin3=.75
ymax3=1.12
wlammin1=3201.34
wlammax1=8230.47
wlammin2=3201.34
wlammax2=8230.47
wlammin3=3517.79 ! The high point of the spectrum.
wlammax3=7576.39 ! Blueward of the telluric line.
/

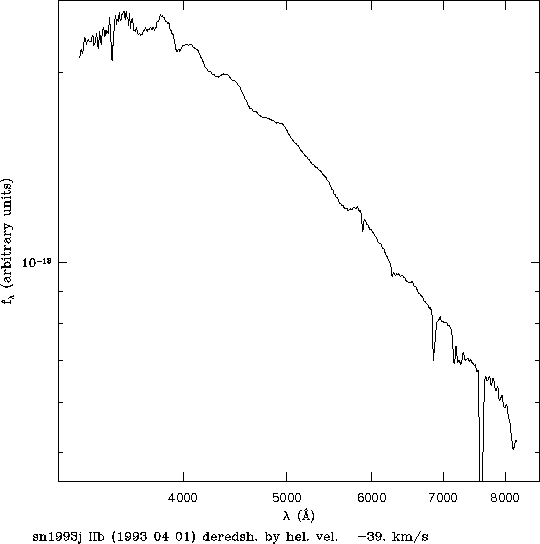

Postscript plot of the spectrum.

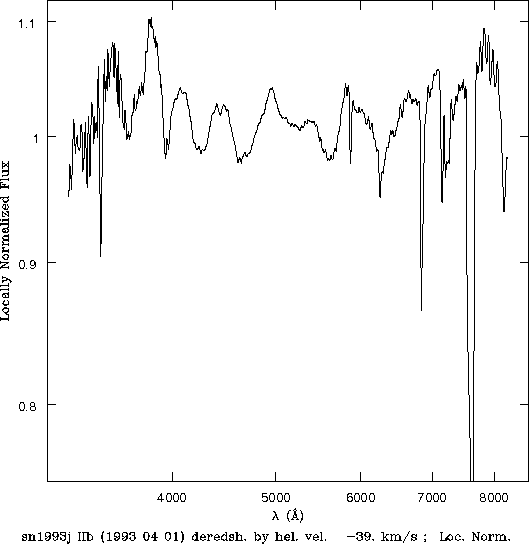

Postscript plot of the spectrum with local normalization.
Information from somewhere.
From ac@tycho.as.utexas.edu Thu Jun 10 11:04:05 1993
Organization: Dept. Physics & Astronomy, The University of Oklahoma
Date: Tue, 8 Jun 93 19:21:13 GMT
From: ac@tycho.as.utexas.edu (Alejandro Clocchiatti)
Posted-Date: Tue, 8 Jun 93 19:21:13 GMT
To: baron@phyast.nhn.uoknor.edu, pah@cvxastro.MPA-Garching.MPG.DE
Subject: SN 1993J - F_lambda - UT April 1.14/1993 = JD 2449074.64
END:
3201.34 2.10349E-13
3207.93 2.17245E-13
3214.53 2.16858E-13
3221.12 2.13479E-13
3227.71 2.19977E-13
3234.30 2.27379E-13
3240.90 2.26113E-13
3247.49 2.21297E-13
3254.08 2.24735E-13
3260.67 2.25647E-13
3267.27 2.23548E-13
3273.86 2.23470E-13
3280.45 2.24135E-13
3287.05 2.28580E-13
3293.64 2.29103E-13
3300.23 2.20411E-13
3306.82 2.22055E-13
3313.42 2.26593E-13
3320.01 2.30470E-13
3326.60 2.19495E-13
3333.20 2.18141E-13
3339.79 2.32384E-13
3346.38 2.27469E-13
3352.97 2.20615E-13
3359.57 2.30611E-13
3366.16 2.35316E-13
3372.75 2.33667E-13
3379.34 2.27664E-13
3385.94 2.33585E-13
3392.53 2.30204E-13
3399.12 2.32716E-13
3405.72 2.29759E-13
3412.31 2.44299E-13
3418.90 2.34777E-13
3425.49 2.21504E-13
3432.09 2.08467E-13
3438.68 2.20991E-13
3445.27 2.29241E-13
3451.87 2.41064E-13
3458.46 2.46493E-13
3465.05 2.37787E-13
3471.64 2.43257E-13
3478.24 2.40096E-13
3484.83 2.48695E-13
3491.42 2.43028E-13
3498.01 2.41083E-13
3504.61 2.46723E-13
3511.20 2.47075E-13
3517.79 2.50042E-13
3524.39 2.49246E-13
3530.98 2.42445E-13
3537.57 2.49729E-13
3544.16 2.44865E-13
3550.76 2.44260E-13
3557.35 2.36804E-13
3563.94 2.48381E-13
3570.54 2.34234E-13
3577.13 2.41664E-13
3583.72 2.42992E-13
3590.31 2.40172E-13
3596.91 2.33328E-13
3603.50 2.32980E-13
3610.09 2.31540E-13
3616.68 2.35492E-13
3623.28 2.32917E-13
3629.87 2.29202E-13
3636.46 2.29736E-13
3643.06 2.30611E-13
3649.65 2.28654E-13
3656.24 2.29251E-13
3662.83 2.28845E-13
3669.43 2.32672E-13
3676.02 2.32787E-13
3682.61 2.33139E-13
3689.21 2.36162E-13
3695.80 2.32845E-13
3702.39 2.32393E-13
3708.98 2.33946E-13
3715.58 2.33329E-13
3722.17 2.34402E-13
3728.76 2.36069E-13
3735.35 2.34165E-13
3741.95 2.33596E-13
3748.54 2.35867E-13
3755.13 2.34453E-13
3761.73 2.32956E-13
3768.32 2.35186E-13
3774.91 2.35857E-13
3781.50 2.40985E-13
3788.10 2.40388E-13
3794.69 2.40732E-13
3801.28 2.43072E-13
3807.88 2.46815E-13
3814.47 2.45904E-13
3821.06 2.44847E-13
3827.65 2.46613E-13
3834.25 2.43844E-13
3840.84 2.44333E-13
3847.43 2.42379E-13
3854.02 2.40506E-13
3860.62 2.41557E-13
3867.21 2.38927E-13
3873.80 2.40099E-13
3880.40 2.38931E-13
3886.99 2.35432E-13
3893.58 2.33171E-13
3900.17 2.32691E-13
3906.77 2.29840E-13
3913.36 2.30219E-13
3919.95 2.26900E-13
3926.54 2.23767E-13
3933.14 2.20281E-13
3939.73 2.17450E-13
3946.32 2.15242E-13
3952.92 2.15475E-13
3959.51 2.19512E-13
3966.10 2.17943E-13
3972.69 2.13699E-13
3979.29 2.16983E-13
3985.88 2.18462E-13
3992.47 2.20184E-13
3999.07 2.21550E-13
4005.66 2.20815E-13
4012.25 2.20320E-13
4018.84 2.21897E-13
4025.44 2.21302E-13
4032.03 2.22506E-13
4038.62 2.20964E-13
4045.21 2.20737E-13
4051.81 2.20433E-13
4058.40 2.21785E-13
4064.99 2.20939E-13
4071.59 2.21467E-13
4078.18 2.21461E-13
4084.77 2.19894E-13
4091.36 2.19095E-13
4097.96 2.18630E-13
4104.55 2.18312E-13
4111.14 2.18232E-13
4117.74 2.17466E-13
4124.33 2.16941E-13
4130.92 2.17358E-13
4137.51 2.14240E-13
4144.11 2.13296E-13
4150.70 2.13189E-13
4157.29 2.11242E-13
4163.88 2.09798E-13
4170.48 2.09850E-13
4177.07 2.07178E-13
4183.66 2.07366E-13
4190.26 2.03753E-13
4196.85 2.04089E-13
4203.44 2.03098E-13
4210.03 2.02974E-13
4216.63 2.01841E-13
4223.22 2.00317E-13
4229.81 2.00980E-13
4236.41 2.00122E-13
4243.00 2.00366E-13
4249.59 2.00519E-13
4256.18 1.98393E-13
4262.78 1.98034E-13
4269.37 1.97993E-13
4275.96 1.98290E-13
4282.55 1.97649E-13
4289.15 1.97038E-13
4295.74 1.96906E-13
4302.33 1.96533E-13
4308.93 1.97559E-13
4315.52 1.95826E-13
4322.11 1.96842E-13
4328.70 1.97449E-13
4335.30 1.97174E-13
4341.89 1.98230E-13
4348.48 1.97900E-13
4355.08 1.98442E-13
4361.67 1.98579E-13
4368.26 1.99059E-13
4374.85 1.98426E-13
4381.45 1.98265E-13
4388.04 1.98101E-13
4394.63 1.98294E-13
4401.22 1.97679E-13
4407.82 1.98571E-13
4414.41 1.97815E-13
4421.00 1.97146E-13
4427.60 1.95629E-13
4434.19 1.95499E-13
4440.78 1.94443E-13
4447.37 1.93411E-13
4453.97 1.94309E-13
4460.56 1.93677E-13
4467.15 1.93775E-13
4473.75 1.93808E-13
4480.34 1.93558E-13
4486.93 1.92610E-13
4493.52 1.92157E-13
4500.12 1.91575E-13
4506.71 1.89954E-13
4513.30 1.90460E-13
4519.89 1.90003E-13
4526.49 1.88819E-13
4533.08 1.87536E-13
4539.67 1.86069E-13
4546.27 1.85674E-13
4552.86 1.84586E-13
4559.45 1.84043E-13
4566.04 1.82948E-13
4572.64 1.81692E-13
4579.23 1.81038E-13
4585.82 1.80448E-13
4592.42 1.79357E-13
4599.01 1.78183E-13
4605.60 1.77679E-13
4612.19 1.76215E-13
4618.79 1.75404E-13
4625.38 1.74536E-13
4631.97 1.75626E-13
4638.56 1.75182E-13
4645.16 1.74407E-13
4651.75 1.72975E-13
4658.34 1.73586E-13
4664.94 1.73880E-13
4671.53 1.73233E-13
4678.12 1.73144E-13
4684.71 1.73647E-13
4691.31 1.72572E-13
4697.90 1.72221E-13
4704.49 1.71430E-13
4711.08 1.71051E-13
4717.68 1.70868E-13
4724.27 1.71031E-13
4730.86 1.70124E-13
4737.46 1.70423E-13
4744.05 1.69469E-13
4750.64 1.69581E-13
4757.23 1.70155E-13
4763.83 1.69462E-13
4770.42 1.69327E-13
4777.01 1.69445E-13
4783.61 1.69633E-13
4790.20 1.69540E-13
4796.79 1.68842E-13
4803.38 1.69366E-13
4809.98 1.68505E-13
4816.57 1.68596E-13
4823.16 1.68845E-13
4829.75 1.68596E-13
4836.35 1.68248E-13
4842.94 1.67818E-13
4849.53 1.67658E-13
4856.13 1.67806E-13
4862.72 1.67804E-13
4869.31 1.67257E-13
4875.90 1.66838E-13
4882.50 1.67027E-13
4889.09 1.66193E-13
4895.68 1.66077E-13
4902.28 1.66435E-13
4908.87 1.66666E-13
4915.46 1.66495E-13
4922.05 1.66169E-13
4928.65 1.65924E-13
4935.24 1.66090E-13
4941.83 1.66014E-13
4948.42 1.66167E-13
4955.02 1.65925E-13
4961.61 1.65138E-13
4968.20 1.65196E-13
4974.80 1.64810E-13
4981.39 1.64152E-13
4987.98 1.63697E-13
4994.57 1.62955E-13
5001.17 1.62108E-13
5007.76 1.61366E-13
5014.35 1.60788E-13
5020.95 1.60097E-13
5027.54 1.59691E-13
5034.13 1.58974E-13
5040.72 1.58425E-13
5047.32 1.57698E-13
5053.91 1.57321E-13
5060.50 1.56572E-13
5067.09 1.56158E-13
5073.69 1.55993E-13
5080.28 1.55243E-13
5086.87 1.54855E-13
5093.47 1.54568E-13
5100.06 1.54405E-13
5106.65 1.53940E-13
5113.24 1.53391E-13
5119.84 1.53201E-13
5126.43 1.53025E-13
5133.02 1.52556E-13
5139.62 1.51825E-13
5146.21 1.51386E-13
5152.80 1.50711E-13
5159.39 1.50378E-13
5165.99 1.50262E-13
5172.58 1.49614E-13
5179.17 1.48813E-13
5185.76 1.48882E-13
5192.36 1.48846E-13
5198.95 1.48349E-13
5205.54 1.47867E-13
5212.14 1.47093E-13
5218.73 1.46813E-13
5225.32 1.47101E-13
5231.91 1.46499E-13
5238.51 1.45924E-13
5245.10 1.45756E-13
5251.69 1.45011E-13
5258.29 1.44922E-13
5264.88 1.44527E-13
5271.47 1.43716E-13
5278.06 1.43783E-13
5284.66 1.42772E-13
5291.25 1.42877E-13
5297.84 1.42908E-13
5304.43 1.42834E-13
5311.03 1.42113E-13
5317.62 1.41707E-13
5324.21 1.41522E-13
5330.81 1.40985E-13
5337.40 1.41469E-13
5343.99 1.41338E-13
5350.58 1.40603E-13
5357.18 1.40218E-13
5363.77 1.39839E-13
5370.36 1.40006E-13
5376.96 1.39706E-13
5383.55 1.39387E-13
5390.14 1.38753E-13
5396.73 1.38891E-13
5403.33 1.37996E-13
5409.92 1.38001E-13
5416.51 1.37608E-13
5423.10 1.36759E-13
5429.70 1.37327E-13
5436.29 1.36430E-13
5442.88 1.35989E-13
5449.48 1.36415E-13
5456.07 1.35317E-13
5462.66 1.34601E-13
5469.25 1.34539E-13
5475.85 1.34579E-13
5482.44 1.33611E-13
5489.03 1.33325E-13
5495.62 1.32417E-13
5502.22 1.31863E-13
5508.81 1.31157E-13
5515.40 1.30206E-13
5522.00 1.30109E-13
5528.59 1.30874E-13
5535.18 1.29550E-13
5541.77 1.28356E-13
5548.37 1.27851E-13
5554.96 1.27921E-13
5561.27 1.27514E-13
5567.88 1.26849E-13
5574.49 1.26140E-13
5581.09 1.27067E-13
5587.70 1.26114E-13
5594.31 1.25383E-13
5600.92 1.25048E-13
5607.52 1.24038E-13
5614.13 1.24237E-13
5620.74 1.23915E-13
5627.34 1.23742E-13
5633.95 1.22932E-13
5640.56 1.22971E-13
5647.16 1.23249E-13
5653.77 1.22978E-13
5660.38 1.22076E-13
5666.98 1.21749E-13
5673.59 1.21538E-13
5680.20 1.21455E-13
5686.81 1.21487E-13
5693.41 1.22067E-13
5700.02 1.21102E-13
5706.63 1.21708E-13
5713.23 1.20320E-13
5719.84 1.20536E-13
5726.45 1.21649E-13
5733.05 1.21064E-13
5739.66 1.21509E-13
5746.27 1.21416E-13
5752.87 1.20870E-13
5759.48 1.20843E-13
5766.09 1.21226E-13
5772.70 1.22001E-13
5779.30 1.21947E-13
5785.91 1.21590E-13
5792.52 1.22550E-13
5799.12 1.22024E-13
5805.73 1.21611E-13
5812.34 1.21792E-13
5818.94 1.21934E-13
5825.55 1.22467E-13
5832.16 1.22809E-13
5838.76 1.21986E-13
5845.37 1.20464E-13
5851.98 1.20227E-13
5858.59 1.20927E-13
5865.19 1.20717E-13
5871.80 1.20990E-13
5878.41 1.19743E-13
5885.01 1.15963E-13
5891.62 1.11831E-13
5898.23 1.11020E-13
5904.83 1.13529E-13
5911.44 1.16257E-13
5918.05 1.16996E-13
5924.65 1.16730E-13
5931.26 1.16727E-13
5937.87 1.16177E-13
5944.48 1.15117E-13
5951.08 1.14919E-13
5957.69 1.14656E-13
5964.30 1.14351E-13
5970.90 1.14009E-13
5977.51 1.13416E-13
5984.12 1.13294E-13
5990.72 1.12774E-13
5997.33 1.12434E-13
6003.94 1.12805E-13
6010.54 1.12565E-13
6017.15 1.11526E-13
6023.76 1.11284E-13
6030.37 1.11357E-13
6036.97 1.10973E-13
6043.58 1.10899E-13
6050.19 1.10636E-13
6056.79 1.10046E-13
6063.40 1.09760E-13
6070.01 1.09387E-13
6076.61 1.09433E-13
6083.22 1.08603E-13
6089.83 1.07971E-13
6096.44 1.07589E-13
6103.04 1.07393E-13
6109.65 1.07158E-13
6116.26 1.06742E-13
6122.86 1.07163E-13
6129.47 1.07433E-13
6136.08 1.06495E-13
6142.68 1.06190E-13
6149.29 1.05179E-13
6155.90 1.05049E-13
6162.50 1.05041E-13
6169.11 1.04962E-13
6175.72 1.04957E-13
6182.33 1.04869E-13
6188.93 1.03410E-13
6195.54 1.02998E-13
6202.15 1.02681E-13
6208.75 1.02529E-13
6215.36 1.02156E-13
6221.97 1.01991E-13
6228.57 1.01243E-13
6235.18 1.00647E-13
6241.79 1.00015E-13
6248.39 1.00427E-13
6255.00 9.98223E-14
6261.61 9.96066E-14
6268.22 9.88940E-14
6274.82 9.63797E-14
6281.43 9.49443E-14
6288.04 9.46013E-14
6294.64 9.51757E-14
6301.25 9.67337E-14
6307.86 9.59020E-14
6314.46 9.60981E-14
6321.07 9.57393E-14
6327.68 9.52825E-14
6334.28 9.52077E-14
6340.89 9.55095E-14
6347.50 9.61498E-14
6354.11 9.52355E-14
6360.71 9.53904E-14
6367.32 9.57824E-14
6373.93 9.58941E-14
6380.53 9.56277E-14
6387.14 9.52923E-14
6393.75 9.54547E-14
6400.35 9.45855E-14
6406.96 9.52541E-14
6413.57 9.50010E-14
6420.17 9.53393E-14
6426.78 9.51112E-14
6433.39 9.54528E-14
6440.00 9.49227E-14
6446.60 9.42760E-14
6453.21 9.45548E-14
6459.82 9.46525E-14
6466.42 9.41437E-14
6473.03 9.34467E-14
6479.64 9.33312E-14
6486.24 9.33522E-14
6492.85 9.27670E-14
6499.46 9.32042E-14
6506.06 9.29787E-14
6512.67 9.28065E-14
6519.28 9.28031E-14
6525.89 9.30860E-14
6532.49 9.29386E-14
6539.10 9.27507E-14
6545.71 9.28415E-14
6552.31 9.26140E-14
6558.92 9.29610E-14
6565.53 9.36168E-14
6572.13 9.29642E-14
6578.74 9.26247E-14
6585.35 9.17567E-14
6591.96 9.13809E-14
6598.56 9.14928E-14
6605.17 9.14191E-14
6611.78 9.13788E-14
6618.38 9.13943E-14
6624.99 9.11536E-14
6631.60 9.05716E-14
6638.20 9.03690E-14
6644.81 8.98684E-14
6651.42 8.92249E-14
6658.02 8.90139E-14
6664.63 8.89732E-14
6671.24 8.93895E-14
6677.85 8.89026E-14
6684.45 8.92165E-14
6691.06 8.87710E-14
6697.67 8.80384E-14
6704.27 8.80115E-14
6710.88 8.83441E-14
6717.49 8.77315E-14
6724.09 8.71325E-14
6730.70 8.68345E-14
6737.31 8.66486E-14
6743.91 8.67917E-14
6750.52 8.67272E-14
6757.13 8.64218E-14
6763.74 8.60355E-14
6770.34 8.61939E-14
6776.95 8.56788E-14
6783.56 8.58100E-14
6790.16 8.57096E-14
6796.77 8.55410E-14
6803.38 8.51881E-14
6809.98 8.46148E-14
6816.59 8.43674E-14
6823.20 8.48630E-14
6829.80 8.45312E-14
6836.41 8.40353E-14
6843.02 8.43070E-14
6849.63 8.38818E-14
6856.23 8.28465E-14
6862.84 7.83225E-14
6869.45 6.97737E-14
6876.05 6.83518E-14
6882.66 7.28221E-14
6889.27 7.35407E-14
6895.87 7.38101E-14
6902.48 7.52454E-14
6909.09 7.71627E-14
6915.69 7.90678E-14
6922.30 8.02876E-14
6928.91 8.04021E-14
6935.52 8.04542E-14
6942.12 8.02954E-14
6948.73 8.12753E-14
6955.34 8.11658E-14
6961.94 8.09480E-14
6968.55 8.20951E-14
6975.16 8.20344E-14
6981.76 8.13765E-14
6988.37 8.10706E-14
6994.98 8.05628E-14
7001.58 8.03393E-14
7008.19 8.03317E-14
7014.80 8.06828E-14
7021.41 8.06067E-14
7028.01 8.02812E-14
7034.62 8.00298E-14
7041.23 8.01637E-14
7047.83 8.03830E-14
7054.44 8.02125E-14
7061.05 8.04074E-14
7067.65 8.04648E-14
7074.26 8.00371E-14
7080.87 7.98437E-14
7087.48 7.96773E-14
7094.08 7.92711E-14
7100.69 7.94867E-14
7107.30 7.93403E-14
7113.90 7.92344E-14
7120.51 7.90483E-14
7127.12 7.88759E-14
7133.72 7.86535E-14
7140.33 7.84683E-14
7146.94 7.80065E-14
7153.54 7.74336E-14
7160.15 7.66783E-14
7166.76 7.44303E-14
7173.37 7.22402E-14
7179.97 7.04301E-14
7186.58 6.89763E-14
7193.19 6.88679E-14
7199.79 6.94195E-14
7206.40 7.09253E-14
7213.01 7.31938E-14
7219.61 7.40470E-14
7226.22 7.32549E-14
7232.83 7.10580E-14
7239.43 6.91098E-14
7246.04 6.91355E-14
7252.65 6.98584E-14
7259.26 6.99079E-14
7265.86 6.99207E-14
7272.47 6.93983E-14
7279.08 6.92713E-14
7285.68 6.94916E-14
7292.29 6.92414E-14
7298.90 6.88670E-14
7305.50 6.87340E-14
7312.11 6.97133E-14
7318.72 7.07684E-14
7325.32 7.15728E-14
7331.93 7.21925E-14
7338.54 7.18342E-14
7345.15 7.10723E-14
7351.75 7.07274E-14
7358.36 7.01339E-14
7364.97 6.98074E-14
7371.57 6.99954E-14
7378.18 7.00737E-14
7384.79 7.00663E-14
7391.39 7.02038E-14
7398.00 7.02209E-14
7404.61 7.04432E-14
7411.21 7.03911E-14
7417.82 7.02791E-14
7424.43 6.97920E-14
7431.04 6.95286E-14
7437.64 6.96660E-14
7444.25 6.99848E-14
7450.86 7.02467E-14
7457.46 7.01525E-14
7464.07 6.95675E-14
7470.68 6.93048E-14
7477.28 6.93054E-14
7483.89 6.91438E-14
7490.50 6.90855E-14
7497.10 6.91368E-14
7503.71 6.90417E-14
7510.32 6.84091E-14
7516.93 6.83779E-14
7523.53 6.87884E-14
7530.14 6.89913E-14
7536.75 6.82446E-14
7543.35 6.74755E-14
7549.96 6.69465E-14
7556.57 6.73281E-14
7563.17 6.71129E-14
7569.78 6.76474E-14
7576.39 6.73948E-14
7583.00 6.55892E-14
7589.60 5.78369E-14
7596.21 4.04150E-14
7602.82 2.61272E-14
7609.42 2.68437E-14
7616.03 3.67481E-14
7622.64 3.91802E-14
7629.24 3.71750E-14
7635.85 3.77498E-14
7642.46 4.16294E-14
7649.06 4.69333E-14
7655.67 5.19598E-14
7662.28 5.62455E-14
7668.89 5.93404E-14
7675.49 6.20305E-14
7682.10 6.42414E-14
7688.71 6.55087E-14
7695.31 6.60820E-14
7701.92 6.60113E-14
7708.53 6.59104E-14
7715.13 6.48802E-14
7721.74 6.49190E-14
7728.35 6.50958E-14
7734.95 6.48189E-14
7741.56 6.49942E-14
7748.17 6.54795E-14
7754.78 6.56540E-14
7761.38 6.62457E-14
7767.99 6.56143E-14
7774.60 6.51541E-14
7781.20 6.42223E-14
7787.81 6.34626E-14
7794.42 6.38814E-14
7801.02 6.37826E-14
7807.63 6.47062E-14
7814.24 6.53326E-14
7820.84 6.55697E-14
7827.45 6.52472E-14
7834.06 6.53224E-14
7840.67 6.47656E-14
7847.27 6.42097E-14
7853.88 6.31424E-14
7860.49 6.29305E-14
7867.09 6.26453E-14
7873.70 6.24384E-14
7880.31 6.26090E-14
7886.91 6.32441E-14
7893.52 6.33774E-14
7900.13 6.36265E-14
7906.73 6.36009E-14
7913.34 6.23268E-14
7919.95 6.14954E-14
7926.56 6.06070E-14
7933.16 5.98751E-14
7939.77 6.03912E-14
7946.38 6.09702E-14
7952.98 6.06127E-14
7959.59 6.10041E-14
7966.20 6.12390E-14
7972.80 6.18589E-14
7979.41 6.18579E-14
7986.02 6.10897E-14
7992.62 6.01433E-14
7999.23 5.90494E-14
8005.84 5.87881E-14
8012.45 5.91596E-14
8019.05 5.90028E-14
8025.66 5.88340E-14
8032.27 5.87176E-14
8038.87 5.87795E-14
8045.48 5.95300E-14
8052.09 6.02017E-14
8058.69 5.98528E-14
8065.30 5.87487E-14
8071.91 5.84577E-14
8078.52 5.79182E-14
8085.12 5.66851E-14
8091.73 5.65632E-14
8098.34 5.65299E-14
8104.94 5.55534E-14
8111.55 5.61852E-14
8118.16 5.62622E-14
8124.76 5.49492E-14
8131.37 5.37287E-14
8137.98 5.26339E-14
8144.58 5.30692E-14
8151.19 5.25466E-14
8157.80 5.14701E-14
8164.41 5.03174E-14
8171.01 5.02083E-14
8177.62 5.05260E-14
8184.23 5.04979E-14
8190.83 5.13864E-14
8197.44 5.13020E-14
8204.05 5.14457E-14
8210.65 5.22956E-14
8217.26 5.29477E-14
8223.87 5.24637E-14
8230.47 4.99335E-14
