Linear Ramp Generator

Schematic and Board Layouts:
  • Schematic
  • Silkscreen
  • Solder
  • Solder Mirrored

    Express PCB and Schematic files:
  • ramp_gen_pz.pcb
  • ramp_gen_pz.sch

    Read me file explaining the design:
  • readme.txt

    Photos and final assembly (original version with fixes):

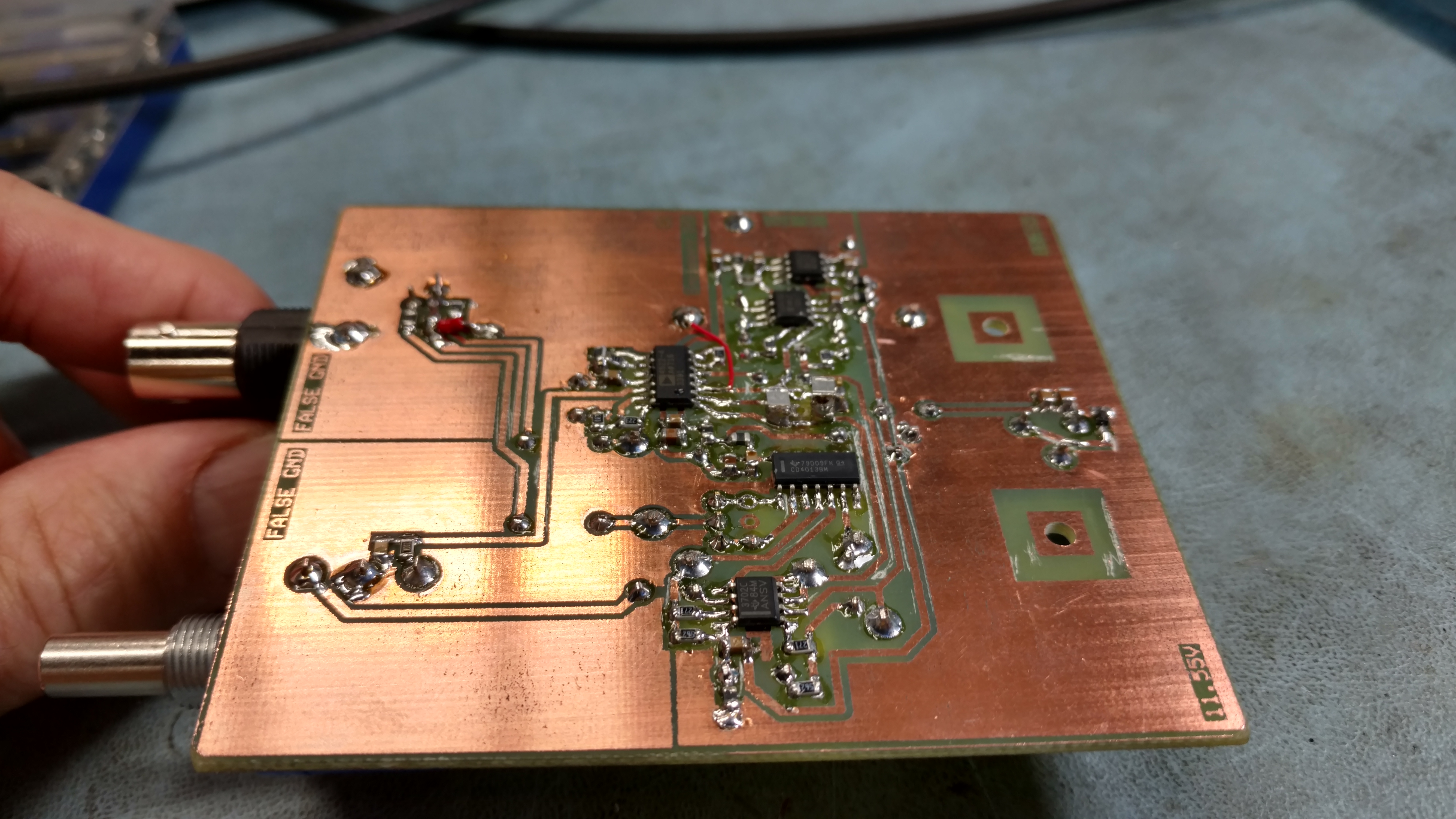

  • Side view of bottom of PCB

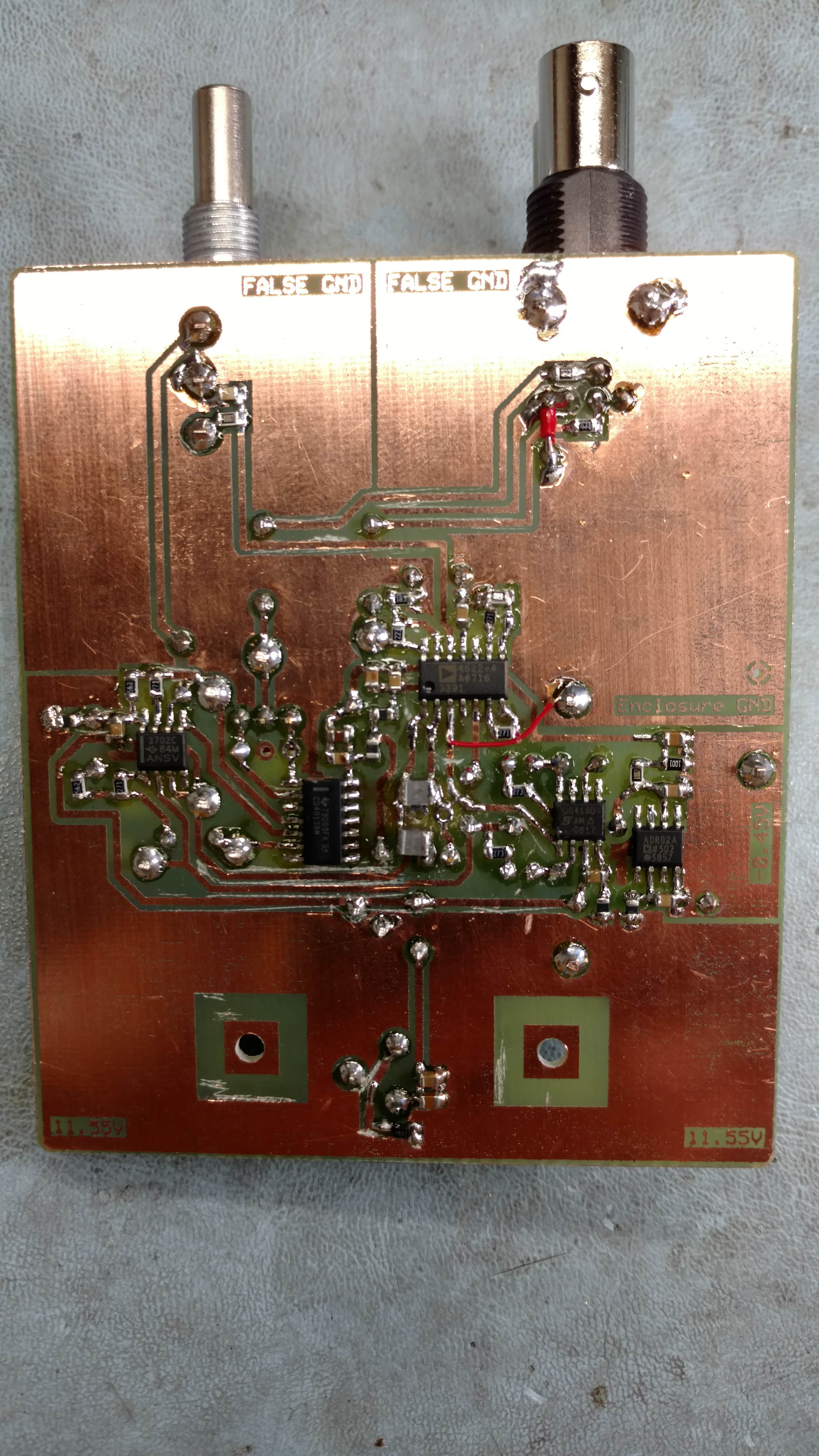

  • Top view of bottom of PCB

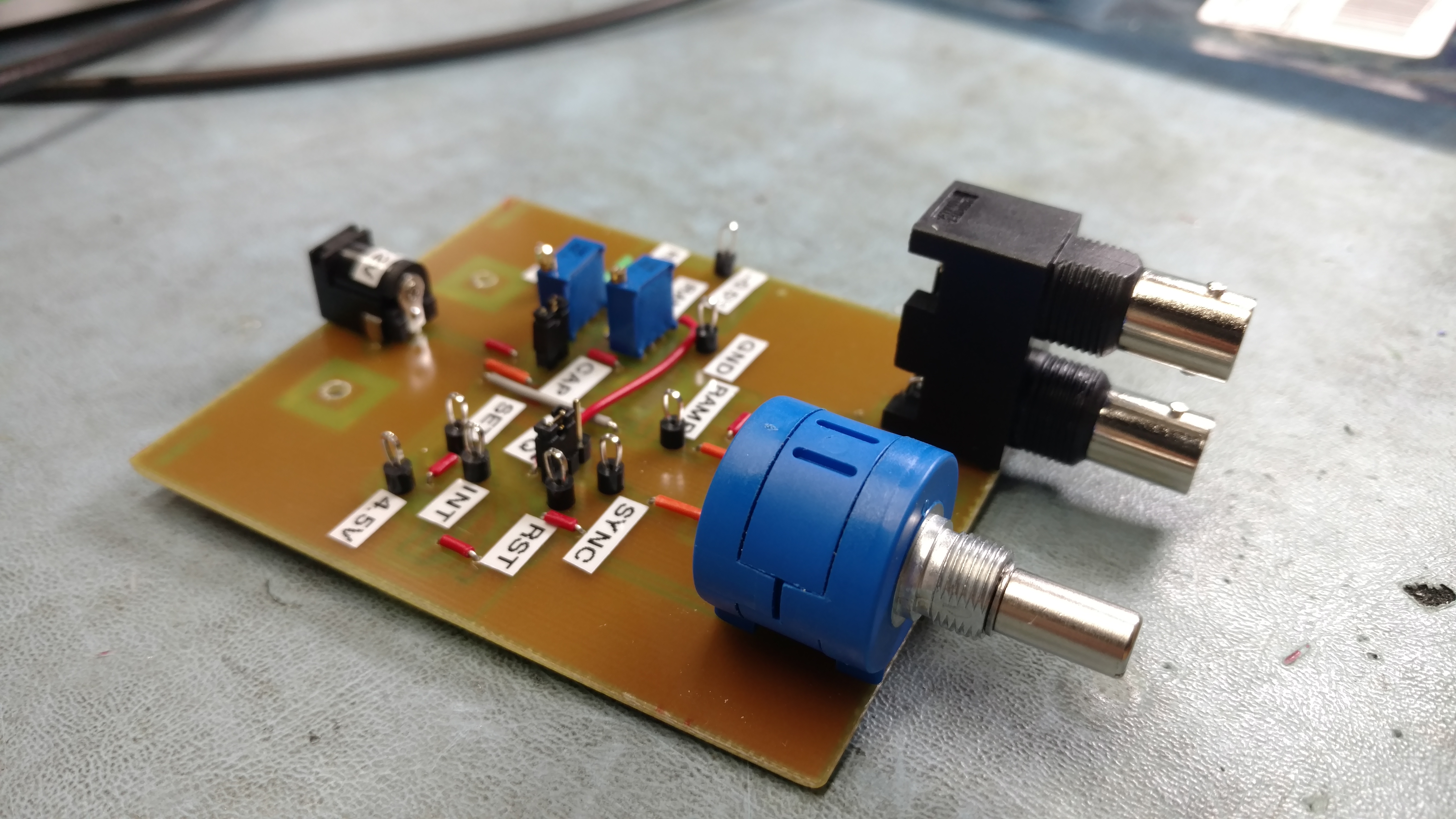

  • Side view of top of PCB

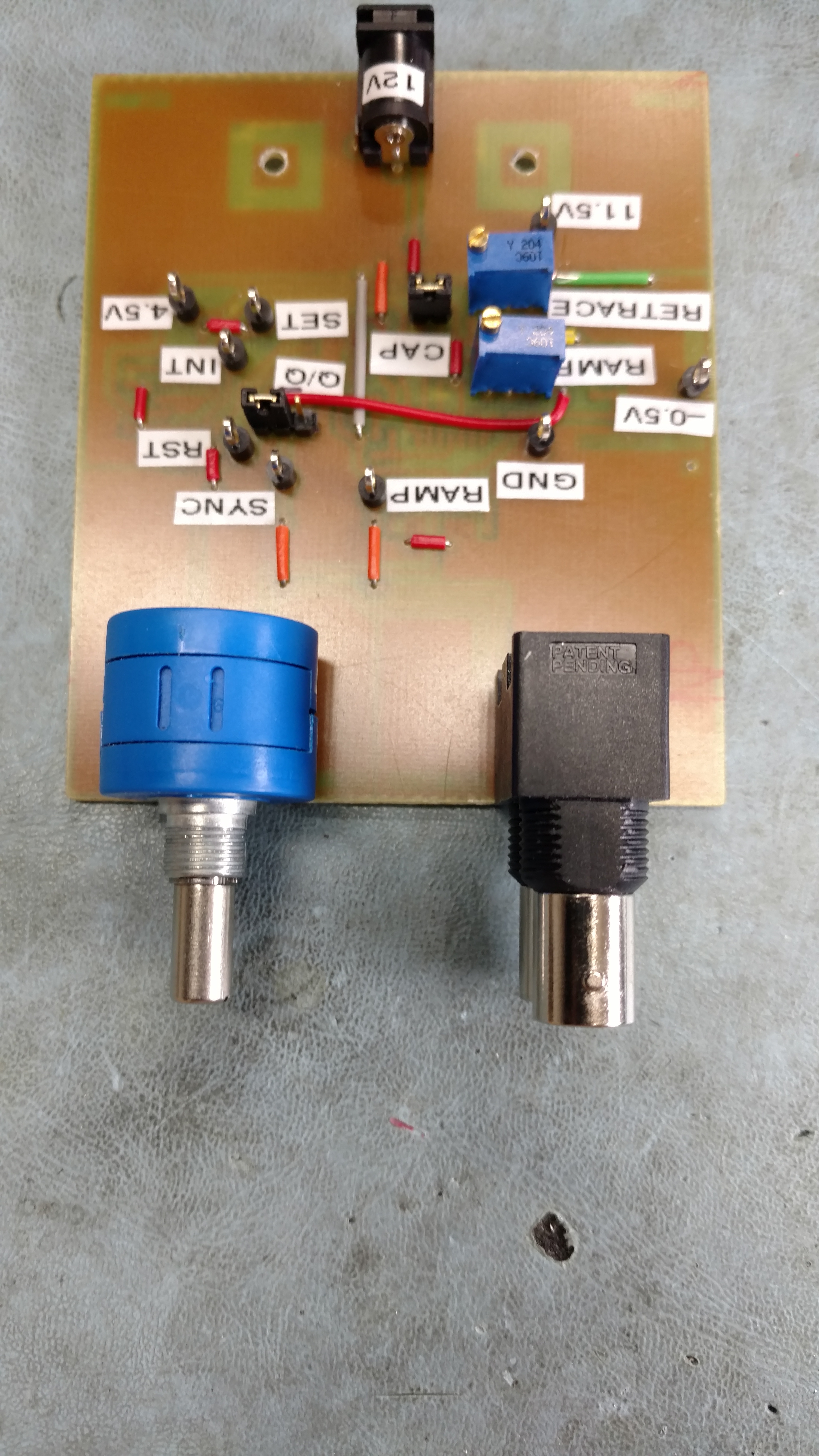

  • Top view of top of PCB rotated

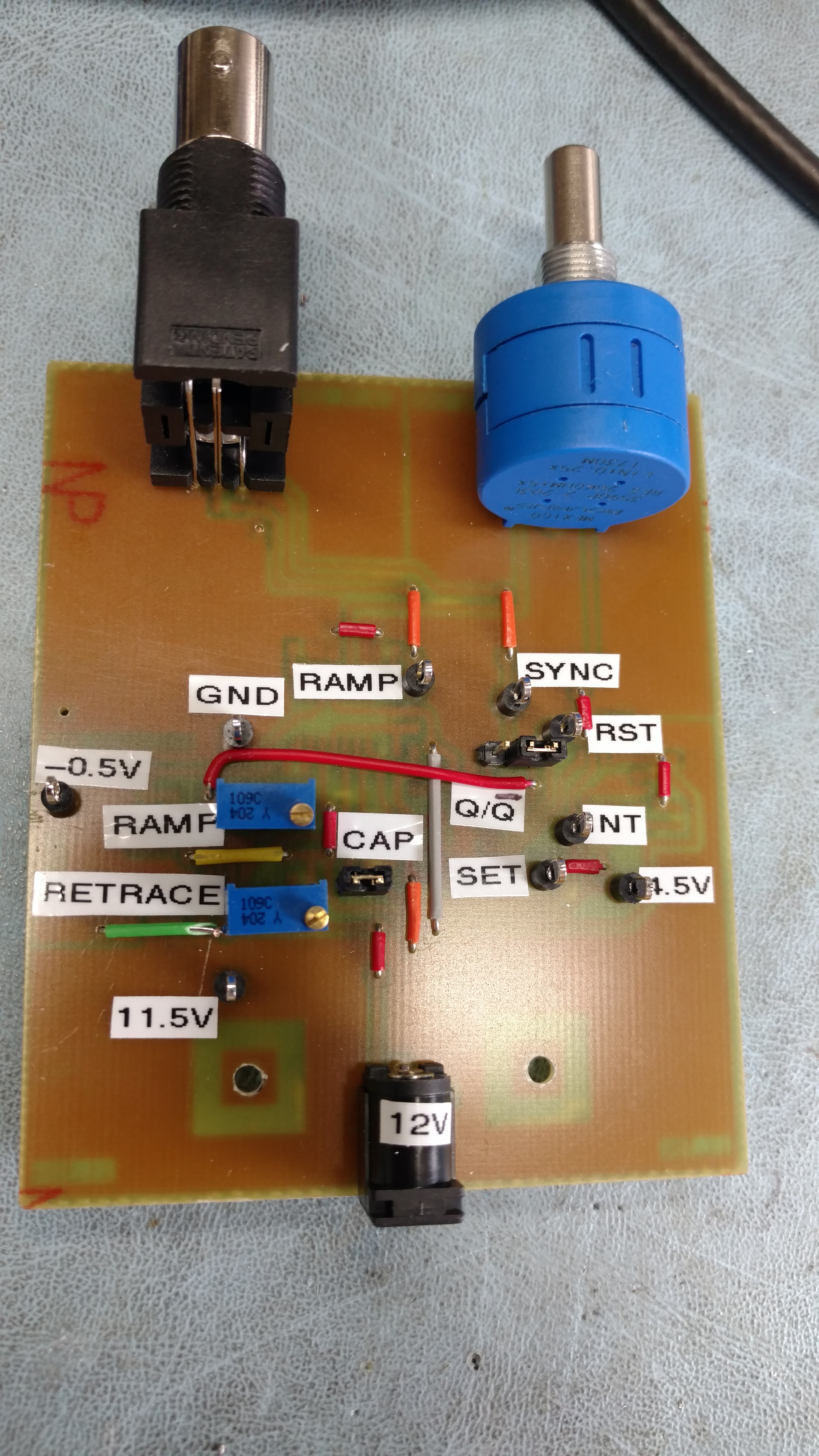

  • Top view of top of PCB

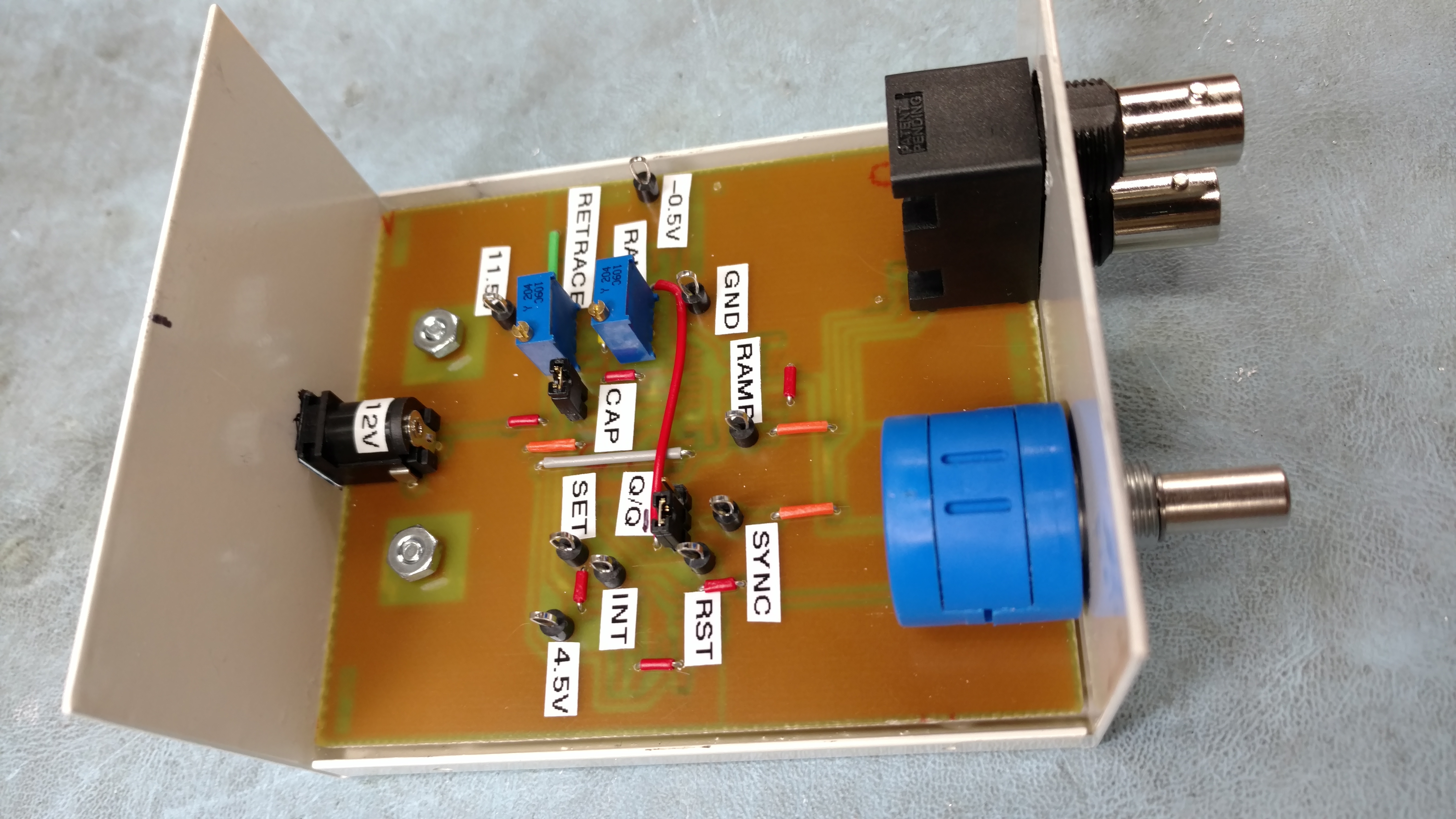

  • Top view of PCB in the box

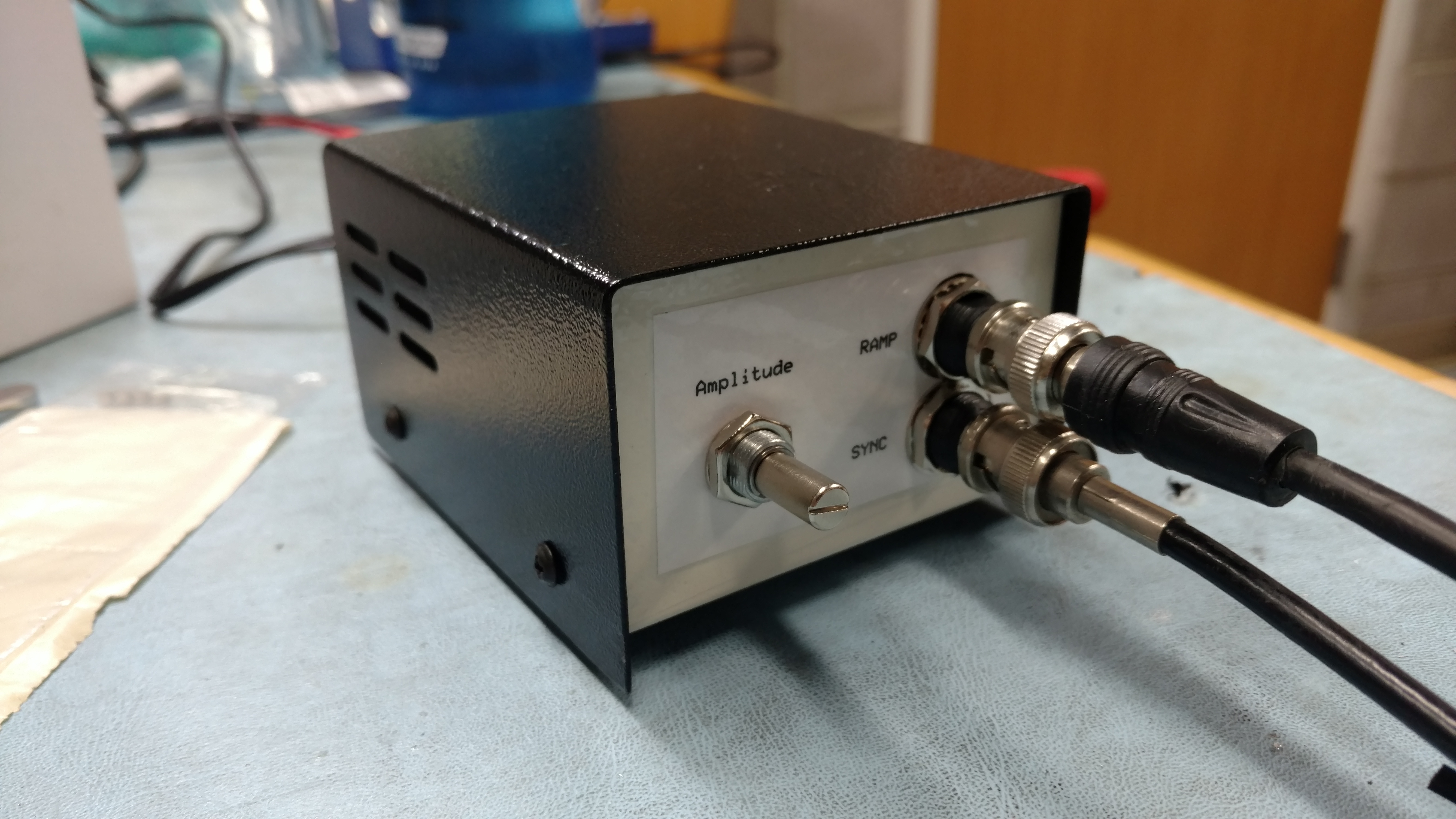

  • Front of box
  • Rear of box

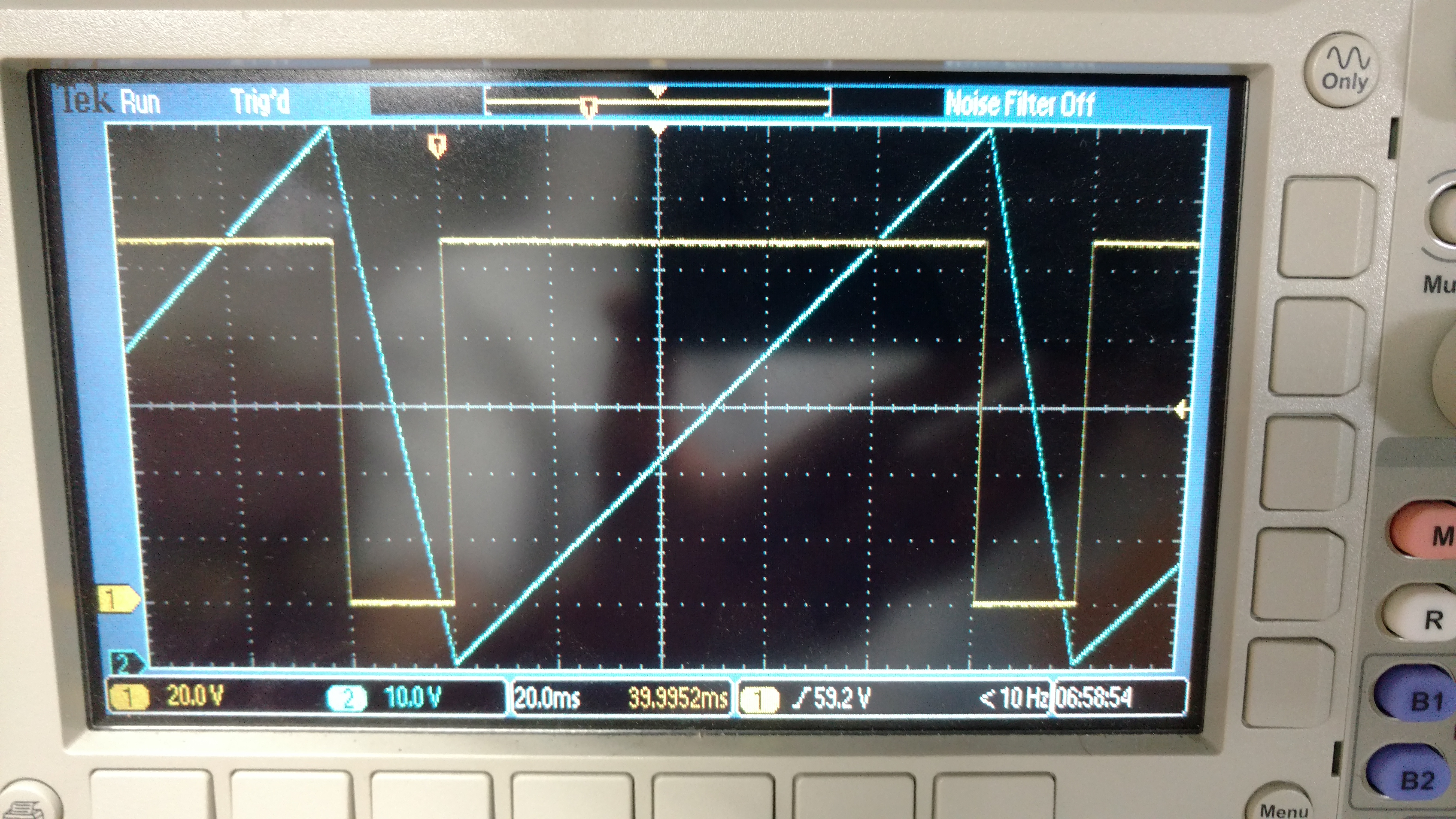

  • Scope shot showing ramp and sync pulses (Note: traces are 2V/div & 1V/div not 20V/div & 10V/div)
